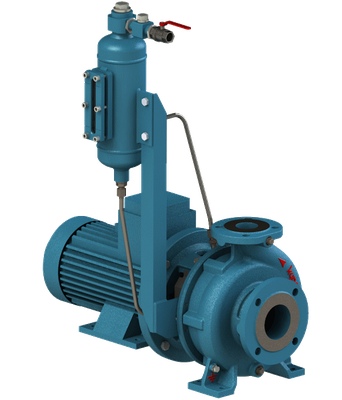

Электронасосы КММ-Х

Наименование	Q	H	n	P2	Pдв	ETA2
40-25-160/2	6.3	32	2900	1.4	2.2	39
40-25-160а/2	6.3	26	2900	1.4	1.5	33
40-25-160б/2	6.3	20	2900	1.3	1.5	27
40-32-180/2	10	45	2900	3.0	3	41
40-32-180а/2	6	40	2900	2.1	2.2	31
50-32-125/2	12.5	20	2900	1.1	1.5	65
50-32-125а/2	12.5	16	2900	0.9	1.5	64
50-32-125б/2	12.5	12	2900	0.7	1.5	63
50-32-160д/2	12.5	36	2900	2.4	4	52
50-32-160/2	12.5	32	2900	2.1	3	52
50-32-160а/2	12.5	26	2900	1.8	3	49
50-32-160б/2	12.5	20	2900	1.5	2.2	45
50-32-160и/2	12.5	17	2900	1.3	2.2	44
50-32-200д/2	12.5	60	2900	4.4	5.5	46
50-32-200/2	12.5	50	2900	3.8	5.5	45
50-32-200в/2	12.5	45	2900	3.4	5.5	45
50-32-200а/2	12.5	40	2900	3.1	4	44
50-32-200б/2	12.5	32	2900	2.6	3	42
65-50-125/2	25	20	2900	2.1	2.2	64
65-50-160/2	25	32	2900	3.3	5.5	66
65-50-160в/2	25	29	2900	3.0	4	66
65-50-160а/2	25	26	2900	2.7	4	65
65-50-160г/2	25	23	2900	2.5	3	64
65-50-160б/2	25	20	2900	2.1	3	64
65-50-200/2	25	50	2900	5.7	7.5	60
65-50-200а/2	25	40	2900	4.5	7.5	60
65-50-200б/2	25	32	2900	3.6	5.5	60
65-50-250/2	25	80	2900	10.9	18.5	50
65-50-250а/2	25	70	2900	9.5	15	50
65-50-250б/2	25	60	2900	8.2	11	50
80-65-160/2	50	32	2900	6.1	7.5	71
80-65-160а/2	50	26	2900	5.1	7.5	70
80-65-160б/2	50	20	2900	4.0	5.5	68
80-65-160и/2	50	16	2900	3.8	5.5	58
80-50-200д/2	50	57	2900	11.1	15	70
80-50-200/2	50	50	2900	9.9	11	69
80-50-200а/2	50	40	2900	8.0	11	68
80-50-200б/2	50	32	2900	6.5	7.5	67
80-50-250/2	50	80	2900	17.3	22	63
80-50-250а/2	50	70	2900	15.6	22	61
80-50-250б/2	50	60	2900	14.1	18.5	58
100-80-160/2	100	32	2900	11.6	15	75
100-80-160а/2	100	26	2900	9.6	11	74
100-80-160б/2	100	20	2900	7.8	11	70
100-80-160в/2	100	16	2900	6.8	7.5	64
100-65-200/2	100	50	2900	18.2	22	75
100-65-200в/2	100	45	2900	16.6	18.5	74
100-65-200а/2	100	40	2900	14.7	18.5	74
100-65-200б/2	100	32	2900	12.3	15	71
100-65-250/2	100	80	2900	30.3	37	72
100-65-250а/2	100	70	2900	26.9	30	71
100-65-250б/2	100	60	2900	23.4	30	70
100-65-250д/2	120	80	2900	36.3	45	72
125-100-200/2	200	50	2900	34.9	45	78
125-100-200в/2	200	45	2900	31.4	37	78
125-100-200а/2	200	40	2900	28.0	37	78
125-100-200г/2	200	36	2900	25.2	30	78
125-100-200б/2	200	32	2900	22.7	30	77
125-100-200и/2	180	30	2900	19.1	22	77
125-100-250/2	200	80	2900	58.9	75	74
125-100-250а/2	200	70	2900	52.3	75	73
125-100-250б/2	200	60	2900	45.4	55	72
125-100-250д/2	200	90	2900	68.1	75	72
150-125-250/2	400	80	2900	107.7	132	81
150-125-250а/2	400	70	2900	95.4	110	80
150-125-250б/2	400	60	2900	82.8	90	79
150-125-250в/2	300	60	2900	64.5	75	76
150-125-250г/2	300	50	2900	54.5	75	75
200-150-250/2	630	80	2900	165.5	200	83
200-150-250а/2	630	70	2900	146.6	200	82
200-150-250б/2	630	60	2900	127.2	160	81
200-150-250в/2	630	50	2900	108.7	132	79
200-150-250г/2	500	50	2900	87.3	110	78
50-32-125/4	6.3	5	1450	0.1	1.1	65
50-32-125а/4	6.3	4	1450	0.1	1.1	64
50-32-160д/4	6.3	9	1450	0.3	1.1	52
50-32-160/4	6.3	8	1450	0.3	1.1	52
50-32-160а/4	6.3	6.5	1450	0.2	1.1	49
50-32-160б/4	6.3	5	1450	0.2	1.1	45
50-32-200д/4	6.3	15	1450	0.6	1.1	46
50-32-200/4	6.3	12.5	1450	0.5	1.1	45
50-32-200а/4	6.3	10	1450	0.4	1.1	44
50-32-200б/4	6.3	8	1450	0.3	1.1	42
65-50-160/4	12.5	8	1450	0.4	1.1	66
65-50-160а/4	12.5	6.5	1450	0.3	1.1	65
65-50-160б/4	12.5	5	1450	0.3	1.1	64
65-50-200/4	12.5	12.5	1450	0.7	1.5	60
65-50-200а/4	12.5	10	1450	0.6	1.1	60
65-50-200б/4	12.5	8	1450	0.5	1.1	60
65-50-250/4	12.5	20	1450	1.4	2.2	50
65-50-250а/4	12.5	17.5	1450	1.2	2.2	50
65-50-250б/4	12.5	15	1450	1.0	2.2	50
80-65-160/4	25	8	1450	0.8	1.1	71
80-65-160а/4	25	6.5	1450	0.6	1.1	70
80-65-160б/4	25	5	1450	0.5	1.1	64
80-65-160и/4	25	4	1450	0.5	1.1	58
80-50-200д/4	25	14	1450	1.4	2.2	70
80-50-200/4	25	12.5	1450	1.2	2.2	69
80-50-200а/4	25	10	1450	1	1.5	68
80-50-200б/4	25	8	1450	0.8	1.1	67
80-50-250/4	25	20	1450	2.2	3	63
80-50-250а/4	25	17.5	1450	2.0	3	61
80-50-250б/4	25	15	1450	1.8	2.2	58
100-80-160/4	50	8	1450	1.5	2.2	75
100-80-160а/4	50	6.5	1450	1.2	1.5	74
100-80-160б/4	50	5	1450	1.0	1.1	70
100-80-160в/4	50	4	1450	0.9	1.1	64
100-65-200/4	50	12.5	1450	2.3	3	75
100-65-200а/4	50	10	1450	1.8	2.2	74
100-65-200б/4	50	8	1450	1.5	2.2	71
100-65-250/4	50	20	1450	3.8	7.5	71
100-65-250а/4	50	17.5	1450	3.4	7.5	70
100-65-250б/4	50	15	1450	3.0	7.5	69
100-65-250д/4	60	20	1450	4.5	7.5	73
125-100-200/4	100	12.5	1450	4.4	5.5	77
125-100-200а/4	100	10	1450	3.5	4	77
125-100-200б/4	100	8	1450	2.9	4	76
125-100-250/4	100	20	1450	7.4	11	74
125-100-250а/4	100	17.5	1450	6.5	7.5	73
125-100-250б/4	100	15	1450	5.7	7.5	72
125-100-250д/4	100	22.5	1450	8.5	11	72
150-125-250/4	200	20	1450	13.6	15	80
150-125-250а/4	200	17.5	1450	12.1	15	79
150-125-250б/4	200	15	1450	10.5	11	78
200-150-250/4	315	20	1450	20.7	30	83
200-150-250а/4	315	17.5	1450	18.3	30	82
200-150-250б/4	315	15	1450	15.9	22	81
200-150-250в/4	315	12.5	1450	13.6	22	79
200-150-250г/4	250	12.5	1450	10.9	22	78
200-150-315/4	315	32	1450	33.9	45	81
200-150-315а/4	315	26	1450	27.9	37	80
50-32-200/6	5	6	960	0.2	0.8	46
80-50-200/6	12.5	6	960	0.3	0.8	72
80-50-250/6	12.5	9.5	960	0.5	1.5	64
100-65-200/6	25	6	960	0.5	1.5	77
100-65-250/6	25	9.5	960	0.9	5.5	76
100-65-250а/6	25	7	960	0.6	5.5	76
125-100-200/6	50	6	960	1.1	2.2	76
125-100-200а/6	50	5	960	0.9	1.5	76
125-100-200б/6	50	4	960	0.7	1.5	75
125-100-250/6	50	9.5	960	1.7	5.5	77
125-100-250а/6	50	7	960	1.2	5.5	77
150-125-250/6	100	9.5	960	3.3	5.5	78
150-125-250а/6	100	7	960	2.5	5.5	77
200-150-250/6	200	9	960	5.9	11	83
200-150-250а/6	200	7	960	4.7	7.5	81
200-150-315/6	200	14	960	9.7	15	79
200-150-315а/6	200	11.5	960	8.1	11	77
